Preparing the ground

Compact rotary tillers

MH 155 K

• Displacement
  80 cm³
• Rotor
  3+3 blades - 46 cm
• Handlebars
  with vertical adjustment
• Rear tool holder
  not available
• Engine make/model
  Emak K 300 H OHV
• Gearbox
  1 forward speed
• Transmission
  in steel
• Overall dimensions
  115x110x46 cm
• Weight
  27.0 kg

Medium power rotary tillers

MH 175 RKS

• Displacement
  182 cm³
• Rotor
  3+3 blades - 82 cm reducible to 55-35 cm, with protection discs
• Handlebars
  fully adjustable
• Rear tool holder
  optional
• Engine make/model
  Emak K 800 HT OHV
• Gearbox
  1 forward speed + 1 reverse
• Overall dimensions
  140x80x82 cm
• Weight
  57 kg

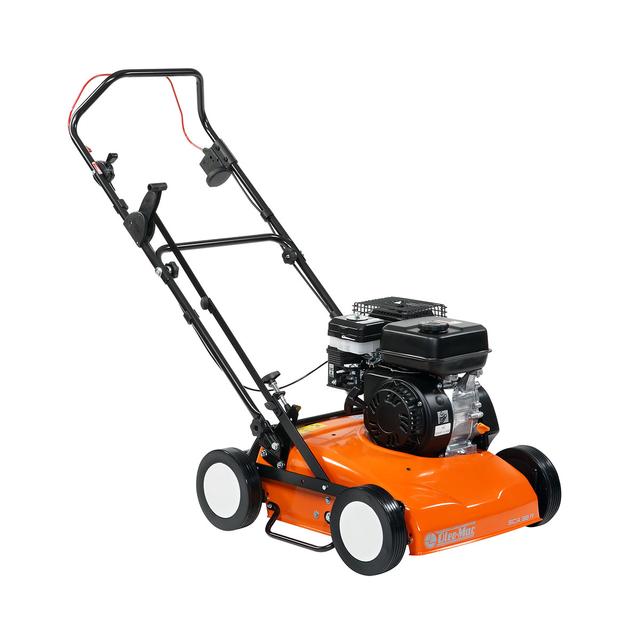

Private use scarifiers

SCA 38 R

• Displacement
  179 cm³ (4.7 HP)
• Working width
  38 cm
• Blade type
  15 blades, fixed
• Deck
  steel
• Engine make/model
  RATO R 180
• Wheels
  diameter 200 mm, plastic
• Cutting depth
  0-22 mm, adjustable with memory
• Overall dimensions
  130x59x109 cm
• Weight
  35 kg

Medium power earth augers

MTL 51

• Power
  2.1 HP - 1.6 kW
• Displacement
  50.2 cm³
• Reduction ratio
  40 : 1
• Bit diameter
  8-10-15-20 cm
• Sound pressure/power level
  100/108 dB(A)
• Lh/rh vibration level
  13.5/13.5 m/s²
• Weight without bit
  9.1 kg

Medium power rotary tillers

MH 198 RKS

• Displacement
  182 cm³
• Rotor
  3+3 blades - 85 cm reducible to 35 cm, with protection discs
• Handlebars
  fully adjustable
• Rear tool holder
  standard
• Engine make/model
  Emak K 800 HC OHV
• Gearbox
  2 forward speed + 1 reverse
• Overall dimensions
  163x105x85 cm
• Weight
  63 kg

Professional scarifiers

SCA 50 H

• Displacement
  163 cm³ (5.0 HP)
• Working width
  50 cm
• Blade type
  28 blades, floating
• Deck
  steel
• Engine make/model
  Honda GP 160 OHV
• Wheels
  diameter 210-250 mm, metal with bearings
• Cutting depth
  0-15 mm, adjustable with memory
• Overall dimensions
  120x82x102 cm
• Weight
  65 kg
