Compact transporters
CONSUMER

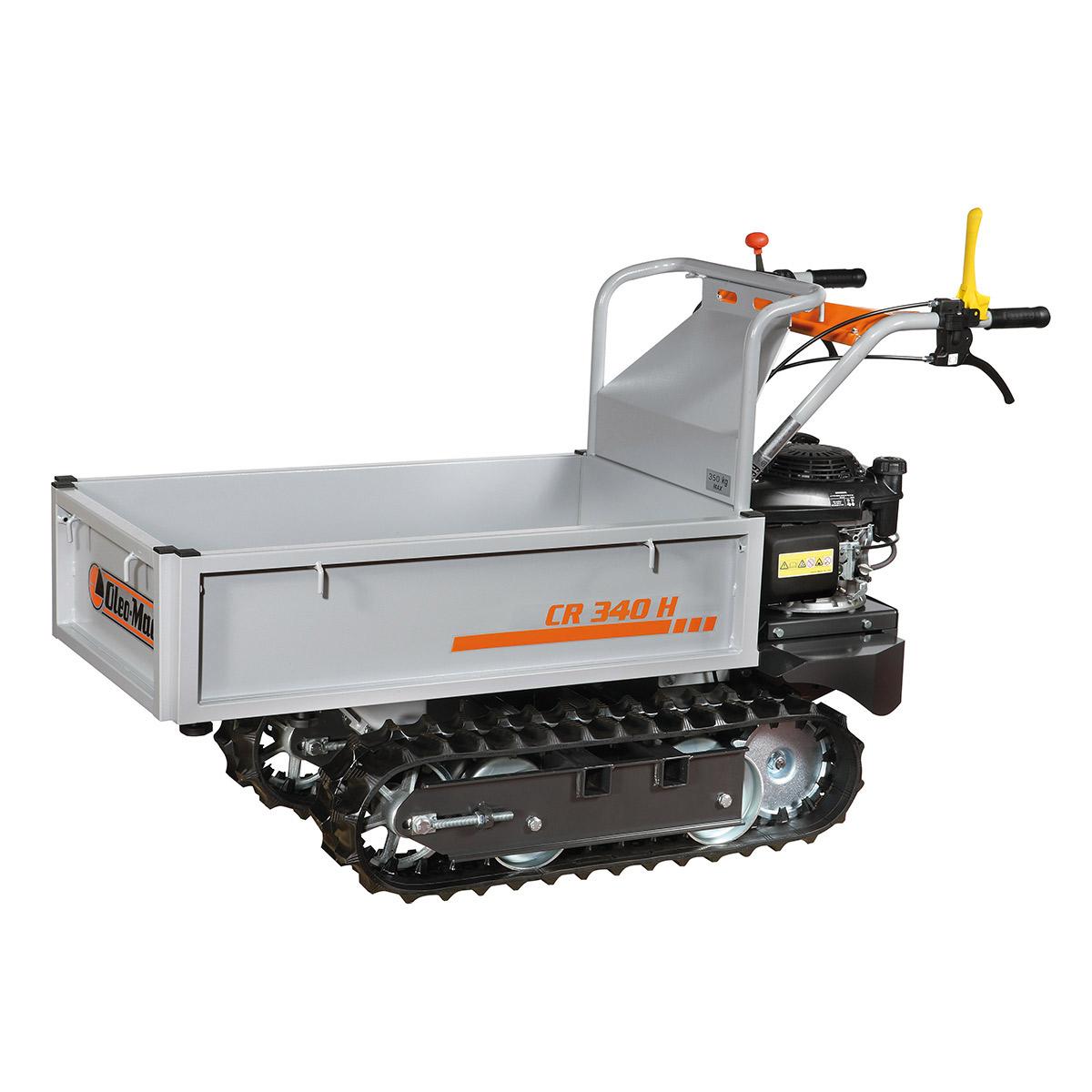

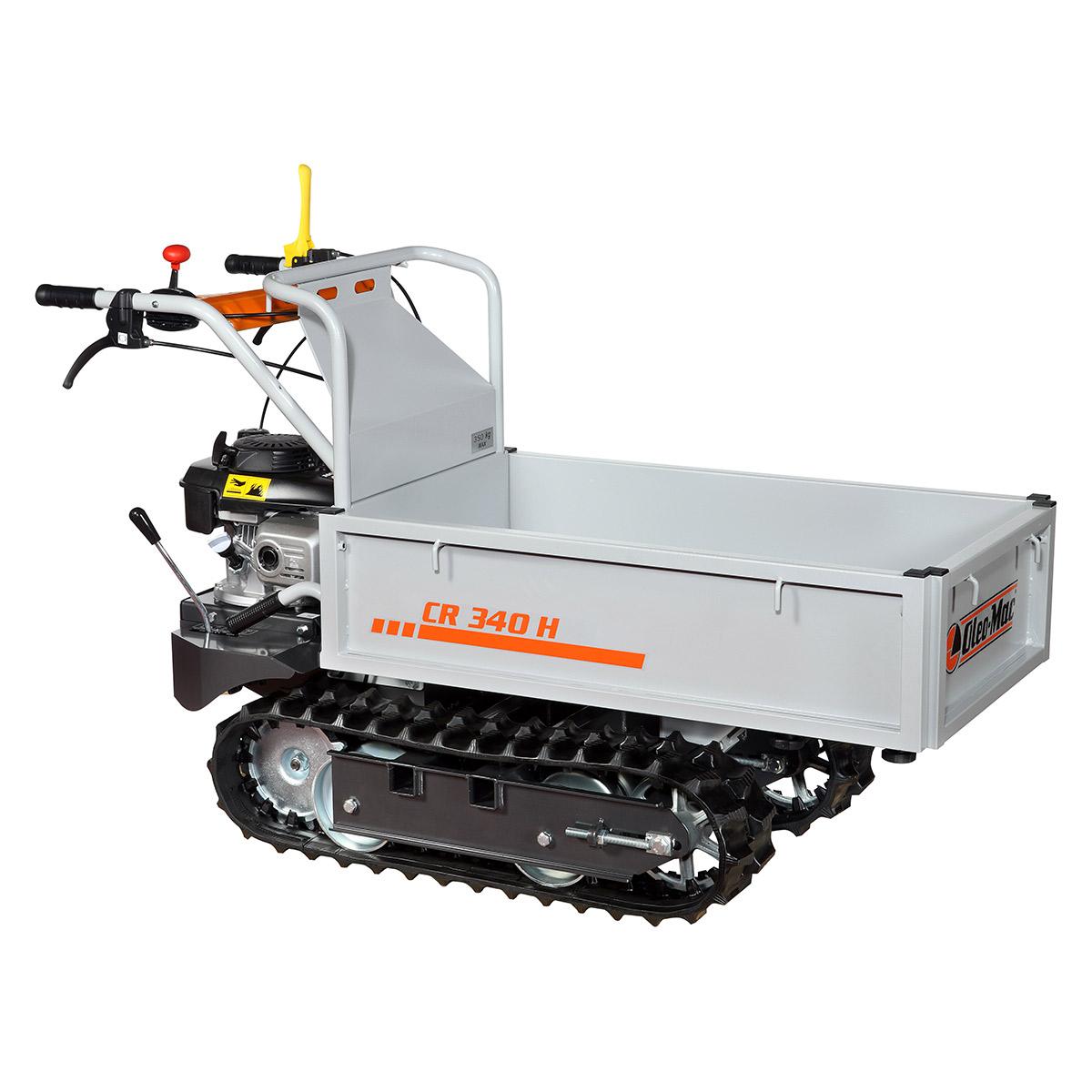

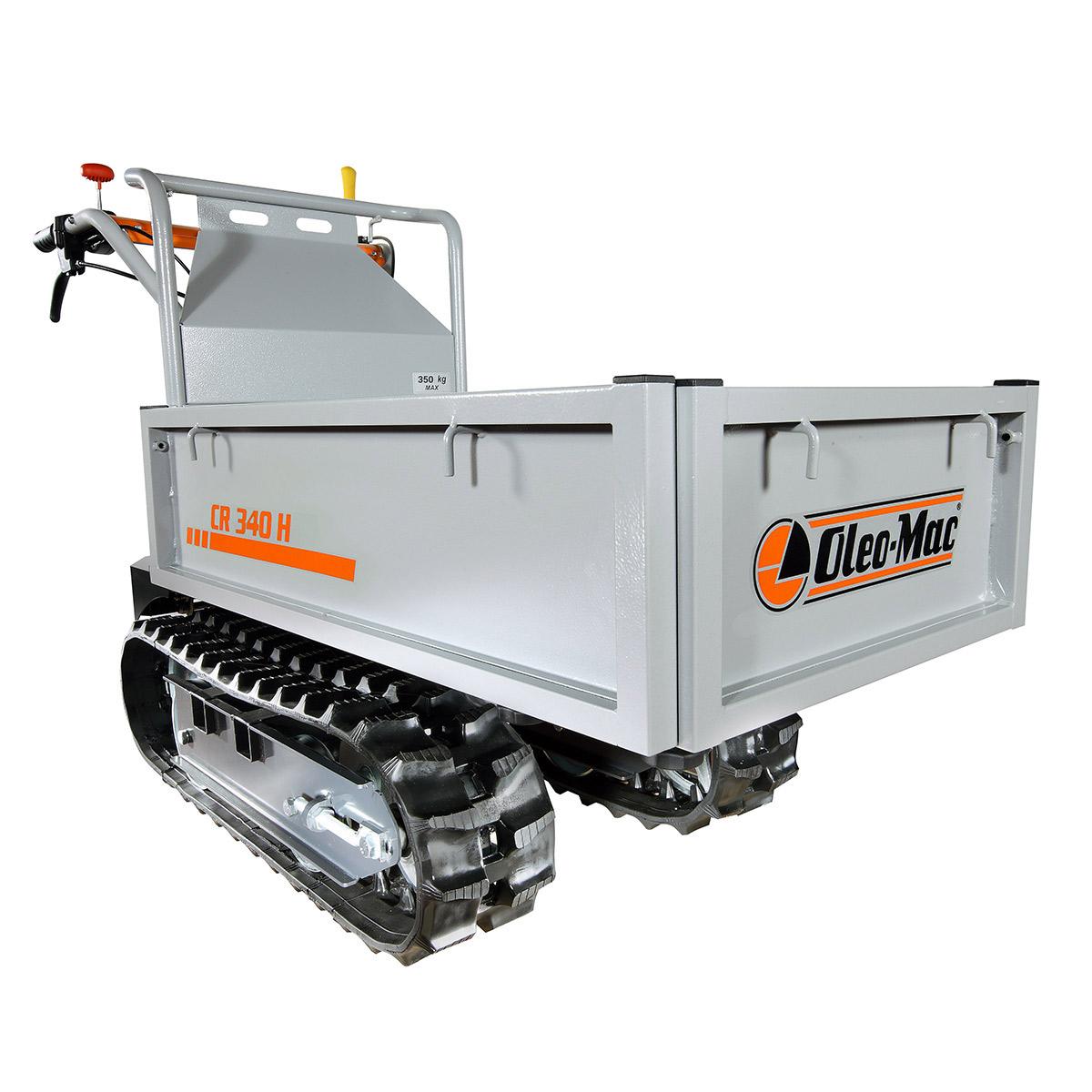

CR 340 H
CONSUMER
- Displacement
- 166 cm³
- Dump angle
- 45°
- Loading surface
- telescoping
- Load capacity
- 350 Kg
- Engine make/model
- Honda GCVx 170 OHV
- Gearbox
- 2+2
- Speed (km/h)
- 1st: 1.6 - 2nd: 3.6 - 1st R: 1.4 - 2nd R: 3.4
- Dumping
- manual
- Minimum steering radius
- 700 mm
- Body length
- 93-106 cm
- Body width
- 52-90 cm
- Overall dimensions
- 153x60x90 cm
- Weight
- 140 kg
- Complete single item weight including packaging
- 175 kg
Data and figures are not binding due to the characteristics of the materials supplied as the products are subject to continuous technical improvements. The data regarding the practical use of the equipment and those of the technical characteristics, as described, may undergo variations without notice.
