Professional transporters

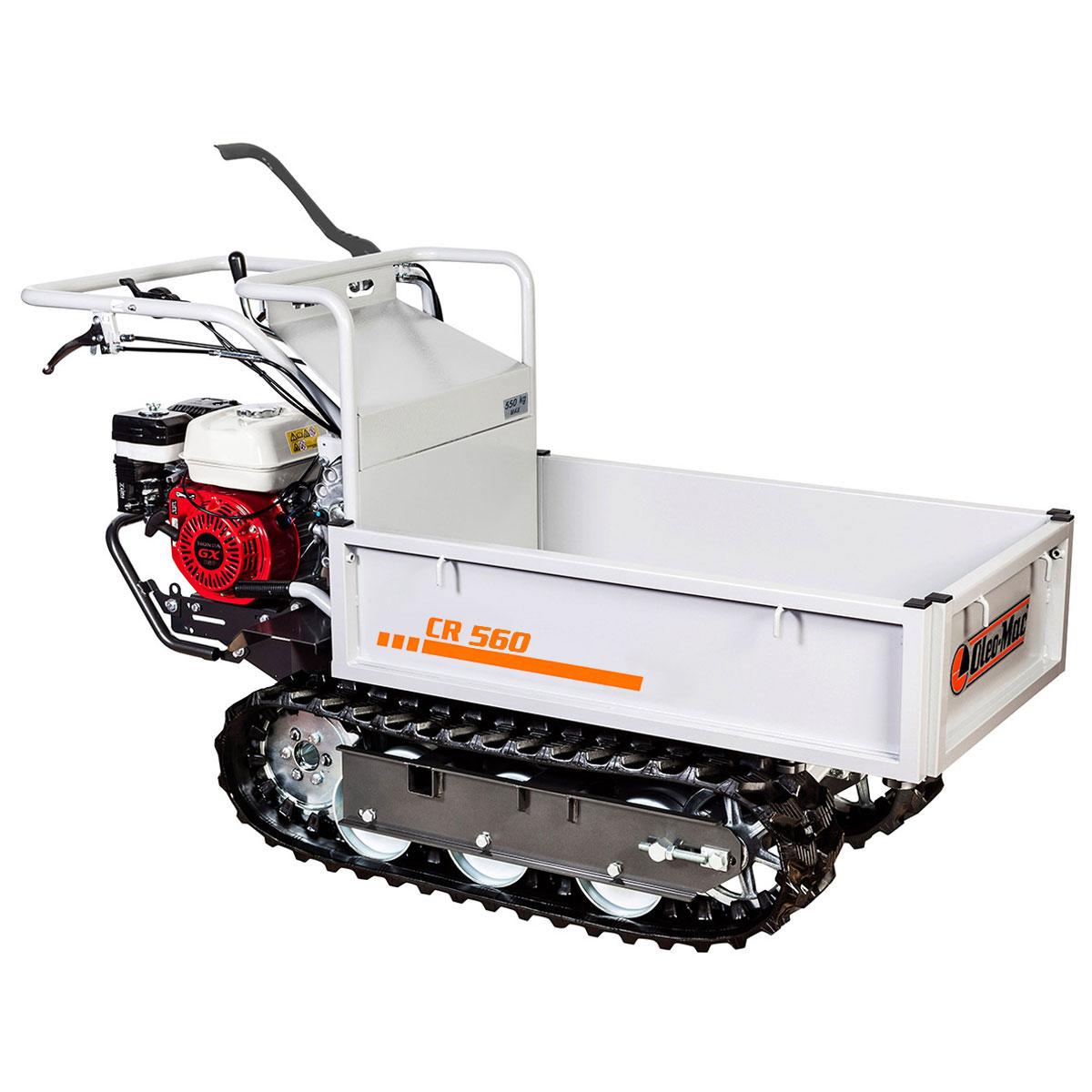

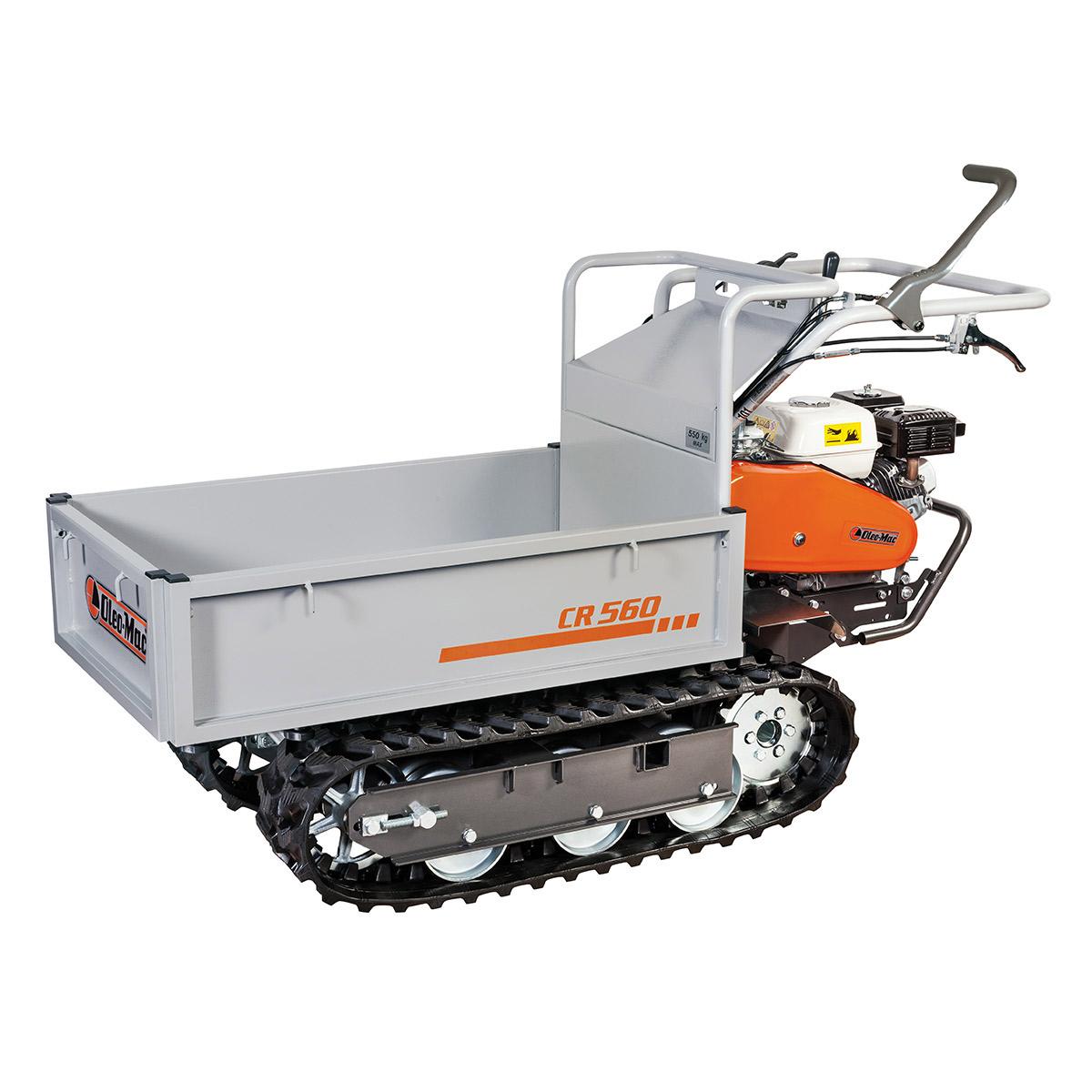

CR 560

  • Displacement 163 cm³ - 182 cm³
  • Dump angle 50°
  • Body telescoping
Read all the features
ADD TO FAVOURITES
Displacement
163 cm³ - 182 cm³
Dump angle
50°
Body
telescoping
Load capacity
550 Kg
Engine make/model
Honda GX 160 OHV - Emak K 800 H
Gearbox
4+2R
Speed (km/h)
1st: 1.88 - 2nd: 3.16 - 3rd: 4.13 - 4th: 7.0 - 1st R: 1.86 - 2nd R: 3.13
Lift/dump
manual
Minimum turning radius
700 mm
Body length
100-118 cm
Body width
65-110 cm
Overall dimensions
175x73x102 cm
Weight
200 kg
Sharp Pro
Sharp Pro

Data and illustrations published are not binding where specifications of materials are concerned, given that these will always be subject to technical improvement. Technical specifications given are subject to change without notice, as also are directions relating to general use of the equipment. Certain items are not available in all countries, or are available only on request.
