H series chainsaws
INTENSIVE

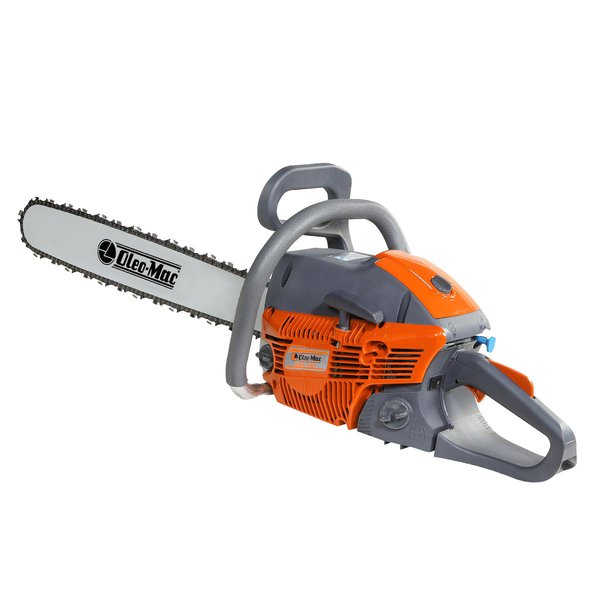

GSH 51 / GSH 510
INTENSIVE
- Power/Displacement
- 3.0 HP - 2.2 kW/50.9 cm³
- Bar length (nose)
- 41-46-51 cm, 16"-18"-20", (sprocket)
- Chain (pitch x gauge)
- .325’’ x .058’’ (20’’), Oregon .325” x .050’’ (16’’-18’’)
- Oil Pump
- automatic, adjustable, zero flow rate at idle speed
- Oil/fuel tank capacity
- 0.27 L/0.5 L
- Sound pressure/power level
- 110/113 dB(A)
- Lh/rh vibration level
- 5.2/4.8 m/s²
- Dry weight without bar and chain
- 5.4 kg
Data and figures are not binding due to the characteristics of the materials supplied as the products are subject to continuous technical improvements. The data regarding the practical use of the equipment and those of the technical characteristics, as described, may undergo variations without notice.
50310237C - CZ - F - GR - GB - I - PL - P - RUS - SK - E - D50310238B (phase II) - CHI50310254C - RO50310255C - SLO50310256C - BIH - HR - MNE - SRB50310294C - FIN50310295C - EST - LV - LT50310253C - H50310394C - TR50310124B extra-CE - BIH - HR - F - GB - MNE - RUS - SRB - E - UA50310225A extra-CE - BR50310343 rev.1 extra-CE - KO
